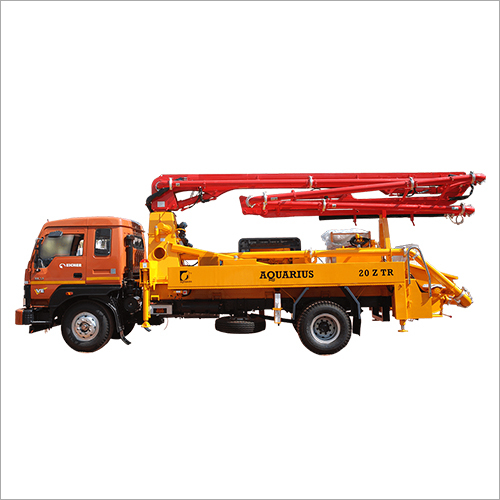

Truck Mounted Boom Pump-M 20.07 Z
Product Details:
X
Product Description
Specification
| Parameters | Unit | M 20.07 Z |
|
|
|
|
| Arms | No. | 3 |
| Boom Folding |
| Z |
| Chassis Allowable GVW | kg | 16000 |
| Horizontal Reach (max.) | M | 16.4 |
| Vertical Reach (max.) | M | 20 |
| Reach Depth | M | 9.5 |
| Unfolding Height | M | 5.5 |
| Slewing Range | Deg | 365 |
| Delivery Line Diameter | Mm | 125 |
| Length of End Hose (dn 125) | M | 3 |
| Max. Hydraulic Pressure | Bar | 300 |
| Electrical System | V | 24 |
| Power Drive Slave Engine | kw | 82 |
