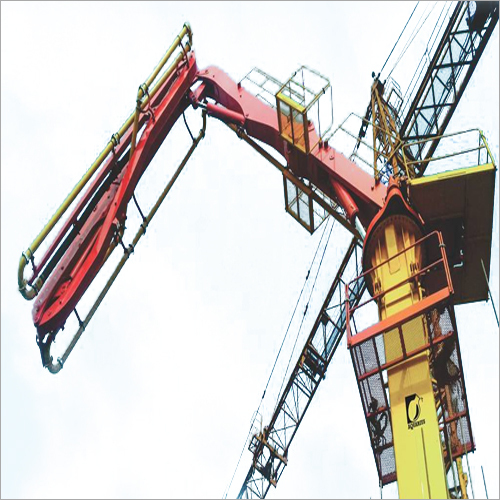

Stationary Boom Placer SB32

Get a Price/Quote

Product Details:

Material Other
Automatic No
Control System Manual
Color Yellow And Red
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Stationary Boom Placer SB32 Price And Quantity

Minimum Order Quantity 1 Piece

Stationary Boom Placer SB32 Product Specifications

Material Other
Color Yellow And Red
Automatic No
Control System Manual

Stationary Boom Placer SB32 Trade Information

Supply Ability 5 Piece Per Month
Delivery Time 1-2 Months
Main Export Market(s) Middle East Asia
Main Domestic Market All India

Product Description

We provide the SB32 Stationary Boom Placer, whose maximum horizontal and vertical reach is 32 meter, respectively. This machine is available with a pedestal which weighs 8500kg. This machine has a feature of modular weight-optimized design for simple tower crane installation. The features also include a radio remote supplied as standard equipment, easy installation in floors and lift shafts, and compliance with ASME B30.27-2014 Standard.

Specification

Parameters		Unit	SB 32
Max. Vertical reach		mm	32m
Max. Horizontal Reach		mm	32m
Delivery Pipe Diameter		mm	125
Slewing Range		deg	Free Slewing
Each Section Length	1st Arm 2nd Arm 3rd Arm 4th Arm	mm mm mm mm	9000 7500 7500 7800
Weight Of Boom with pedastal		kg	8500
Top mast(6m)		kg	3100
Lower mast(6m)		kg	2800
Counter Weight		No	No
Drive		kW	18.5kW/415V/3phase
End Hose		m	4
Cross Base			Optional
