Stationary Boom Placer SB36

Get a Price/Quote

Product Details:

Material Other
Automatic No
Control System Manual
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Stationary Boom Placer SB36 Price And Quantity

Minimum Order Quantity 1 Piece

Stationary Boom Placer SB36 Product Specifications

Automatic No
Control System Manual
Material Other

Stationary Boom Placer SB36 Trade Information

Supply Ability 5 Piece Per Month
Delivery Time 1-2 Months
Main Export Market(s) Middle East Asia
Main Domestic Market All India

Product Description

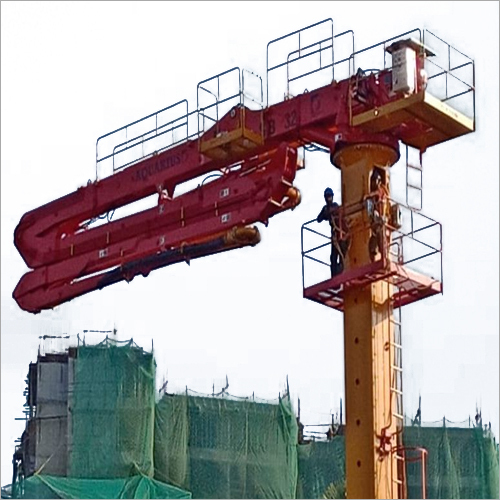

The company has brought the stationary boom placer SB36 for the customers. The boom placer is an important equipment for the construction industry. The pumping of concrete is done by this equipment from a certain height. The extendable arm of the boom placer helps in reaching the high heights. The equipment is a suitable choice for the top floor construction of apartments and buildings. The stationary boom placer SB36 has been manufactured with mild steel.

Specification

Parameters		Unit	SB 36
Max. Vertical reach		mm	36m
Max. Horizontal Reach		mm	36m
Delivery Pipe Diameter		mm	125
Slewing Range		deg	Free Slewing
Each Section Length	1st Arm 2nd Arm 3rd Arm 4th Arm	mm mm mm mm	13000 7500 7500 7800
Weight Of Boom with pedastal		kg	9000
Top mast(6m)		kg	3100
Lower mast(6m)		kg	2800
Counter Weight		No	No
Drive		kW	18.5kW/415V 3phase
End Hose		m	4
Cross Base			Optional
